Abstract
Hengshui Lake Wetland is the only national wetland and bird nature reserve in the North China Plain. It plays an important role in maintaining the species diversity and ecological balance. In recent years, due to industrial and agricultural production, infrastructure and ecological environment construction and other reasons, the infiltration, runoff, evapotranspiration and other water balance elements was changed, which reduced runoff into the lake. In order to ease the tense water resources situation in the region, Hengshui Lake is replenished each year by Yellow River water. Although Diversion Yellow River Wetland has made direct water supply protection, but also affected the ecology and environment of Hengshui Lake wetlands. In order to understand how artificial water diversion can affect the ecological environment of natural lakes, this paper analyzes the effects of artificial water storage on the water quality of the lake by using the measured data of water samples in the lake. The results showed that the water level of Hengshui Lake showed an upward trend after the diversion from the Yellow River. Comprehensive pollution index showed a downward trend, but Hengshui Lake wetlands are still slightly polluted. Diversion of Yellow River diversion into the lake of the ecological health of Hengshui also caused some impact.
Author Contributions
Academic Editor: Sylvester Izah, Department of Biological Science, Niger Delta University, Nigeria.
Checked for plagiarism: Yes
Review by: Single-blind
Copyright © 2018 Xu Weigang, et al.
This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
Competing interests
The authors have declared that no competing interests exist.
Citation:
Introduction
Wetland is one of the most widely distributed and productive natural ecological environment types in the world4. Wetland has conserved water source, purify water quality, control flood, regulating climate, control soil erosion and reduce environmental pollution. It can also provide a wide range of products to humans and leisure places, has great economic value and social value. Healthy wetland ecosystem is an important part of ecological security and an important foundation for sustainable economic and social development.
Over the past 150 years, due to changes in the natural environment and the impact of human activities, more than 50% of the world's wetlands have been degraded or lost 1. About 26 percent of wetlands are used for agricultural production 3 . In the UK, about 23 percent of estuarine wetlands and 40 percent of meadow wetlands are destroyed. In southern Africa, 58 percent of natural wetlands in the Mfolozi valley and 90 percent of wetlands in the Tugela basin have disappeared 6. In southeast Asia, most wetlands have been reclaimed for residential and agricultural land. 78 percent of natural swamp wetlands in Sanjiang plain, China's largest freshwater swamp wetland, are gradually disappearing in recent 50 years. The loss and degradation of wetlands has weakened the wetland ecological service function 7.
Hydrological conditions are the characteristics of the wetland degradation factors. It is also the driving factor of other feature factors such as wetland biology and soil 5. Therefore, it is essential to improve and restore the hydrological conditions during the restoration of wetland conservation and ecological functions.
Ecological water replenishment are typical measures for the restoration of wetland environment. China started to water replenish from the Nenjiang river to Zhalong wetland in 2001. The water replenishment objects are the flood marsh wetland, estuarine wetland and lake wetland, which are caused by natural environment or human activities that cause water shortage. Water replenishment from Yellow River has direct and indirect influence on the ecology and environment of Hengshui lake wetland.
For understand the effect of water replenishment on the ecological environment of natural lakes, this paper combines historical survey data and measured data, (1) provide data support to prevent the degradation and extinction of Hengshui lake by analyzing the relationship between the transferable water quantity and the wetland area. (2) discussed the management of water quality in Hengshui lake by analyzing the relationship between transferable water quantity and wetland water quality.
Study Area
Hengshui lake is located in Hengshui City, Hebei Province. The range is 115°27′50″~115°41′55″, 37°31′40″~37°41′56″. The maximum width of east-west direction is 22.28km. The maximum length is 18.81km from the north to the south. The total area of Hengshui lake is 187.87 km2. The Hengshui Lake wetland is an important base for the protection of birds in China, is also place for scientific research, biodiversity conservation, environmental pollution monitoring. It is the only preserved inland freshwater wetland ecosystem in the North China Plain.
Natural rainfall and passenger water are the main source of surface water in Hengshui Lake. The climate is very dry. The Hengshui Lake annual rainfall is only one quarter of the annual evaporation. Therefore the water source of Hengshui Lake mainly rely on artificial water supply. The main water source of artificial water diversion is the Yellow River water: The use of Wei Qianqu transport the Yellow River water, and then enter the Hengshui Lake through the Wangkou gate. This water transfer line is part of the South-North Water Diversion Project. (Figure 1)

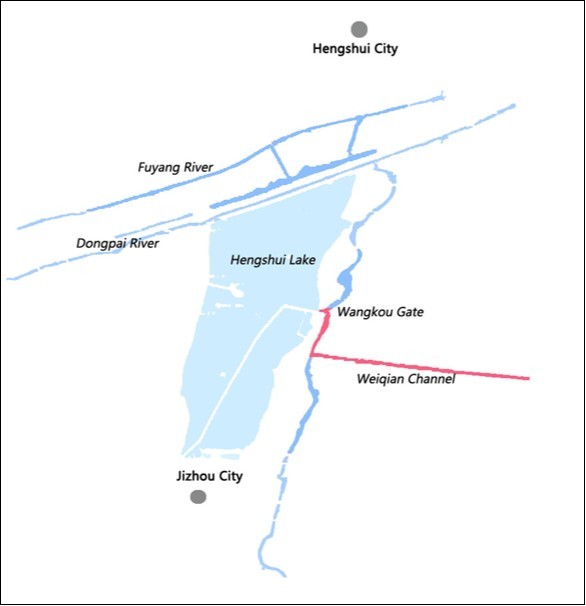

Figure 1.The location of study area
Methods
The sampling sites were located in Wangkou gate, central lake, and Dazhao gate. Dazhao gate is the lake water-break gate. Samples were collected from each point in triplicate. The water samples were collected in 500-mL plastic bottles and stored at 4℃ until analysis. A portable water quality probe (YSI 6820) was used to measure DO, temperature, and pH. The resolution of the instrument measuring parameter DO and pH is 0.01 mg/l and 0.01. Water quality index Ammonia nitrogen and Phosphorus concentration determination were measured using Nessler reagent colorimetric method and molybdenum antimony anti-spectrophotometry. Water quality data before 2014 comes from Hengshui water environment monitoring center of Hebei Province.
Using the comprehensive pollution index analysis before and after the water transfer Hengshui Lake water quality situation:
Pnis the comprehensive pollution index;
n is the number of pollutants;
is the measured concentration of the i pollutants;
is the evaluation standard value of the i pollutants.
Results and Discussion
The water flow into the Hengshui Lake mainly includes precipitation and the inflow of five rivers. Hengshui Lake outflow of water in addition to evaporation and leakage, but also includes industrial water consumption, lake water consumption around the lake. Hengfeng power plant used water 89 million m3from Hengshui Lake every year in 1995-2004. Hengfeng power plant after the second phase of the project, the annual water intake of 170 million m3. Hengshui Lake Basin annual production of drain was 33.76 million m3before 1994. However, Annual production of drain water was 23.40 million m3after 1994, which reduced by more than 30%. The decrease of water production and the increase of water consumption are one of the main causes of the deterioration of ecological environment in Hengshui Lake. The first Yellow River diversion in 1994. A total of diversion of yellow water into the lake water volume of 106.28 million m3. (Figure 2)

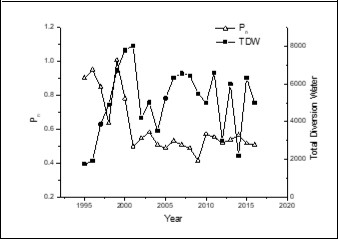

Figure 2.Total diversion water from 1994 to 2016
After the Yellow River Diversion, the average annual water level of Hengshui Lake increased from 18.39m before 1975-1993 to 19.74m, increasing by 7.34%. The maximum water level was above 20m, and the guarantee rate was increased from 36.84% to 86.67% before the Yellow lead. The highest average water level of Hengshui lake water diversion before 19.55 m, after the water diversion of Hengshui lake water level reached the highest average 20.86m in 2017. The average maximum water diversion project implementation of Hengshui Lake years increased by 1.02m. Before the Yellow River Diversion, the frequency of drying up was 68.42%, and there was no drying up after diverting water from the Yellow river. The maximum annual variation of water level before Yellow River diversion is 2.69m, and charge to 2.00m.
It can be seen from the figure 3 that the water quality of Hengshui Lake has been obviously improved in recent years (especially after 2000). The Pn is basically at a fluctuating level. There are two reasons for the improvement of water quality in Hengshui Lake. On the one hand, it is the dilution adjustment of external water sources and the other is the control of endogenous pollution in Hengshui Lake. The local government has taken a series of measures to control pollution. Such as reducing the discharge of rural sewage in the lake area, limiting the introduction of foreign pollution by tourists and so on. In recent years Hengshui Lake has also hosted the marathon, but also from another aspect to the water quality of Hengshui Lake put forward higher requirements. Hengshui Lake summer water transfer is also part of this reason.
Figure 3.Comparison of annual water quality changes
It can be seen from the figure 4, there was not much difference between the water quality before and after water diversion before 2000, and the impact of water diversion on water quality was relatively small. After 2000, the gap between the water quality before and after water diversion is gradually revealed, and the role of water diversion is also highlighted. Especially after 2010, the water quality before water diversion Pn is about 0.5, and the water quality Pn after water diversion will be reduced to about 0.4. It shows that the pollution of Hengshui Lake has been basically stable in recent years. Appropriate water diversion can obviously reduce water pollution. At the same time, the effect of the introduction of the Yellow River water on biological species was more significant. The algae and zooplankton in the aquatic plants in the lake after the Yellow River were significantly increased. The algae increased by 56 genera, and the zooplankton increased by 81 genera 2. The effects of rainfall and inbound flood on the biological species of Hengshui Lake were not obvious.

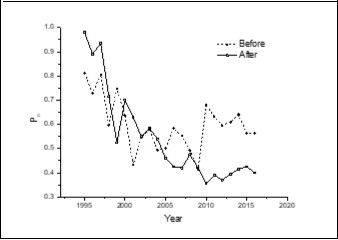

Figure 4.Comparison of water quality changes before and after water transfer
Conclusion
Water diversion in time from the Yellow River can replenish the amount of water coming into the lake in Hengshui Lake. Frequent dry-up in the lake area has been alleviated. However, the restore ecological environment of Hengshui Lake still needs to be further studied and determined. Hengshui Lake wetland water supply protection measures still need to be studied.
The comprehensive pollution index of Hengshui Lake has a decreasing trend since the Yellow River. However, when the Yellow River water is introduced, the Rushes and other pollutants in the Yellow River basin will be introduced into Hengshui Lake with the river water. The related governance measures need further study.
The amount of sand in the lake has a certain impact on the ecological health of Hengshui Lake. The Yellow River is the river with the largest amount of sediment in our country. Although sediment has been settled before the Yellow River enters Hengshui Lake, some sediment is still introduced into Hengshui Lake. This problem should also be taken seriously.
Acknowledgements
This study was supported by the Fundamental Research Funds for the Central Non-profit Research Institution of CAF (No:CAFINT2014C15).
References
- 1.D A Beebe, J W Castle, F J Molz, J H Rodgers. (2014) Effects of evapotranspiration on treatment performance in constructed wetlands: Experimental studies and modeling. , Ecological Engineering 71, 394-400.
- 2.Guo L. (2012) On the Influence of Changes of Hengshui Lake Water Income Quantity on the Wetland HebeiNormalUniversity.
- 4.M L Piva, Boyd R, Boyd J, E C Martin. (2016) Evaluating Wetland Vegetation Establishment at the Baker Wetlands, Douglas County. , Kansas.” Transactions of the Kansas Academy of Science 119(1), 49-63.
- 5.Qin L, Jiang M, Tian W, Zhang J, Zhu W. (2017) Effects of wetland vegetation on soil microbial composition: A case study in Tumen River Basin, Northeast China. , Chinese Geographical Science: 1-9.
